Product Description

Specification:

Color: black red

Material: metal

Bar Length: 20 in

Pitch: 0.325”

Sprocket: 7T*0.325”

Chain width: 0.058”

Power: 2600W

Gas Displacement: 62CCcm3

Rotating Speed: 12500rpm

Fuel capacity: 550ML

Oil capacity: 260ML

Voltage: 12 V

Gross weight: 6.5kg

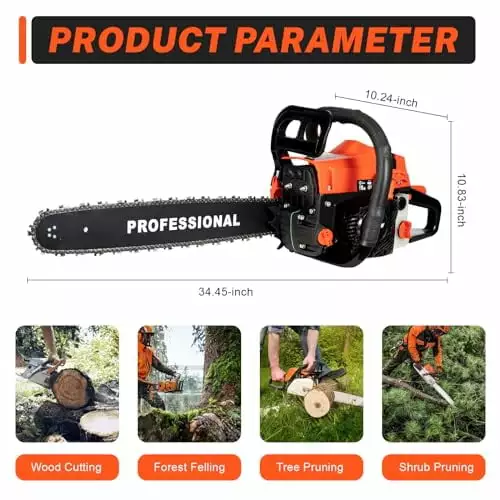

Size: 58*27*33cm

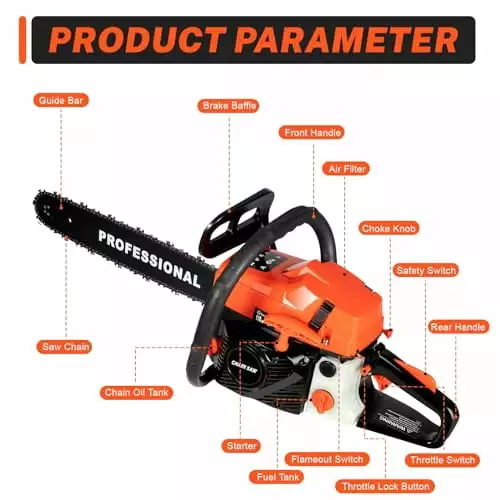

Have a Closer Look at the Chain Saw

Application

This chain saw is sharp to cut the twigs. branches. bushes. shrubs and trees. With exceptional hardness and durability. it is good for sawing. cutting. pruning and trimming wood. perfect tool for gardening…

Easy to Operate

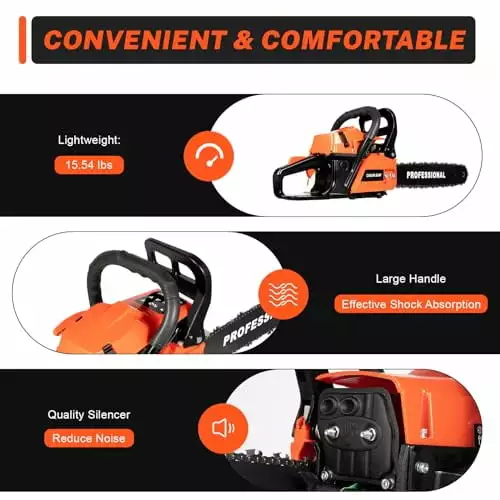

With comfort grip handle. the saw is of good quality. slip-resistant. comfortable and easy for cutting wood. effective to increase working efficiency

Feature

The saw is waterproof and rustproof. and is easy to clean with water. durable for long-lasting use.

Guide chain installation step diagram

Step 1: Install the guide plate

Step 2: Install the chain

Step 3: Align the holes to install the side cover and screw on the nut

Step 4: Adjust the tightness of the chain

Step 5: Sleeve lock nut

Add engine oil & gasoline

Step 1:

Add engine oil. The function of engine oil is to lubricate the chain. so you must wait for the oil to spray out before you can go to the tree.

Step 2:

Add gasoline. The ratio of gasoline to oil is 25:1 or 20:1. 20:1 is recommended (must be two-stroke oil. and Mobil two-stroke oil is recommended). Do not use four-stroke engine oil or other engine oil. otherwise it will easily cause cylinder pulling or other problems

How to Start

1. Pull up the flameout switch

2. Pull out the damper

3. Pull the start handle: Pull the start handle 3-6 times. When you hear the machine banging. push the damper back in. otherwise the machine will not start.

4. Close the damper: Turn off the air door. pull the start handle 1-3 times again. you can start normally

What You Get

1 x Hand saw

1 x Funnel

1 x Proportioning pot

Notice

Installation Manual Is NOT Included

Professional Installation Is Highly Recommended

• High-quality Material: This chain saw is made of a high-quality PP shell. manganese steel guide bar. and chain. which is sturdy and durable

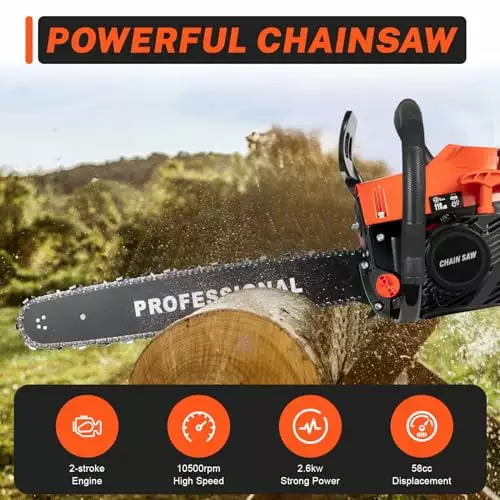

• Two-stroke Chainsaw: This gas chainsaw adopts a two-stroke engine with a speed of up to 10500rpm and a power of up to 2.6kw. It can provide stable power for the saw chain

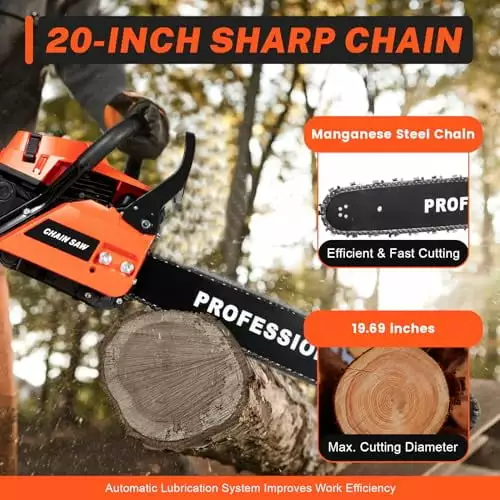

• 20 Chain: The 20in manganese steel guide chain is hardened to cut trees quickly. Its maximum cutting diameter is 19.69 in. This cordless chainsaw is lightweight(15.54lbs). so you can operate easily
• 0.15Gal Fuel Tank: The 0.15Gal tank capacity allows you to use it for longer at a time. The air-cooling system and the dense cooling holes in the casing dissipate heat quickly and promptly
• Application: This chain saw is sharp to cut the twigs. branches. bushes. shrubs and trees. With exceptional hardness and durability. it is good for sawing. cutting. pruning and trimming wood. perfect tool for gardening. wordworking. landscaping
