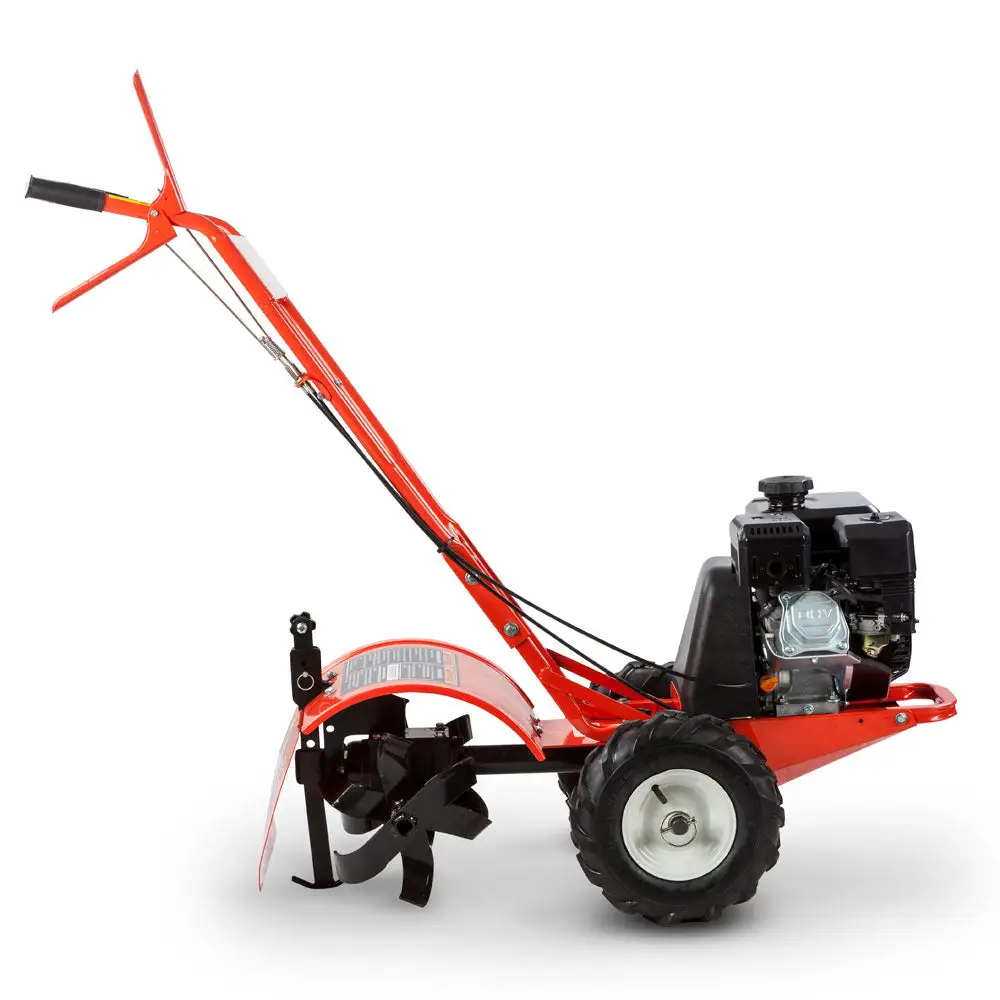

Power-driven wheels and counter-rotating tines give this tiller the extra power you need for busting sod and churning through the toughest soils…even heavy clay. A powerful OHV engine and agressive counter-rotating tines gives the DR Rear Tine Tiller the extra muscle you need for sod-busting. and makes all types of soil preparation fast and easy. Power driven wheels can be released with a pin for free-wheeling when needed to travel or maneuver the tiller.
- Engine: 212 cc. 10.2 ft-lbs gross torque). OHV
- Counter rotating tines
- Tilling width: 16
- Tilling depth: Up to 11
- Tine size: 11
- Wheels: 13 pneumatic
- Power driven wheels
- Drag stake and debris shield
- Powerful engine.
Specifications
- Fuel Capacity: 3.8 qts
- Starting Type: Recoil
- Displacement: 212 cc
- Engine Type: OHV
- Number Of Cylinders: 1
- Air Filter: Paper
- Oil Capacity: 18.5 oz
- Oil Filter: Paper
- Lubrication: Splash
- Oil Type: 30HD/10W-30
- RPM Speeds: 3700
- Cooling Methods: Forced air
- Number of Tires: 2
- Tire Size 13 x 5.
Additional Features
- Power Driven Wheels: The tractor style pneumatic tires propel the tiller forward easily in almost any terrain. The wheels can be released with a pin for free-wheeling when needed to travel or maneuver the tiller
- Counter Rotating Tines (CRT): The tines rotate in opposition to the powered wheels. creating an aggressive tilling action. This gives the machine the additional muscle you need for heavier uses. like sod-busting or tilling in heavy clay soil
- Drag Stake and Debris Shield: The drag stake provides extra resistance. When not needed. it can be raised and pinned in place. The debris shield protects operator from thrown soil
- Powerful Engine: Easy-starting. OHV engine has 10.2 ft-lbs gross torque (212cc). 3700 RPM and cast iron cylinder sleeve. Warranted for 2 years (90 days in commercial use).WARNING: Cancer and reproductive harm – .
