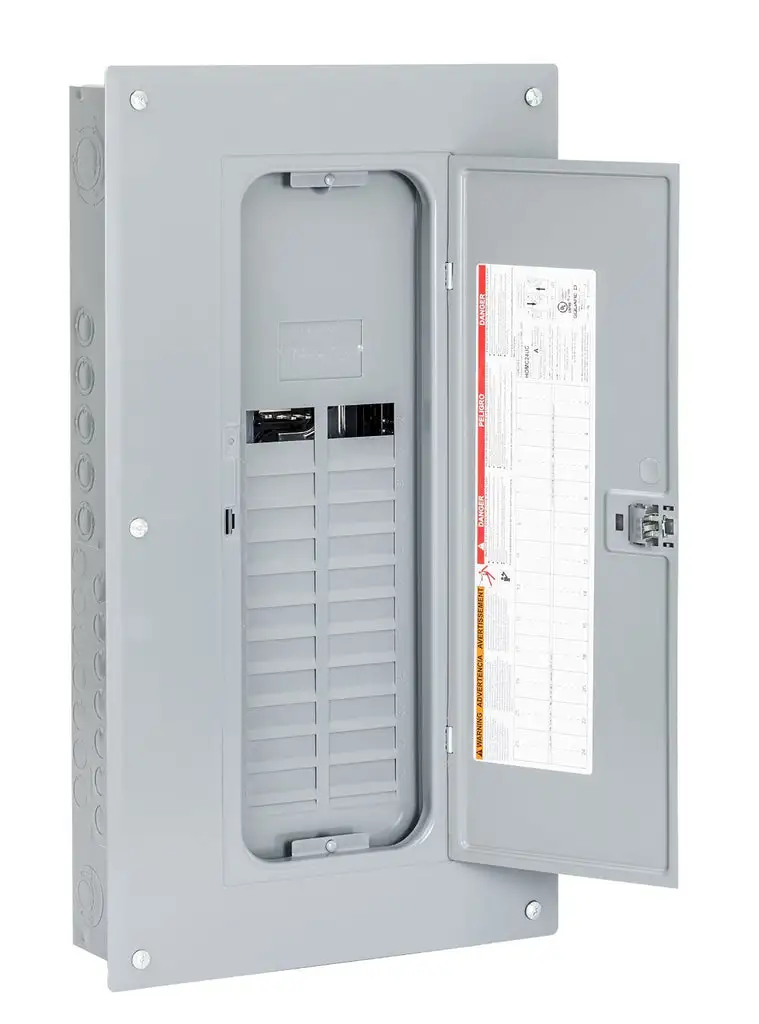

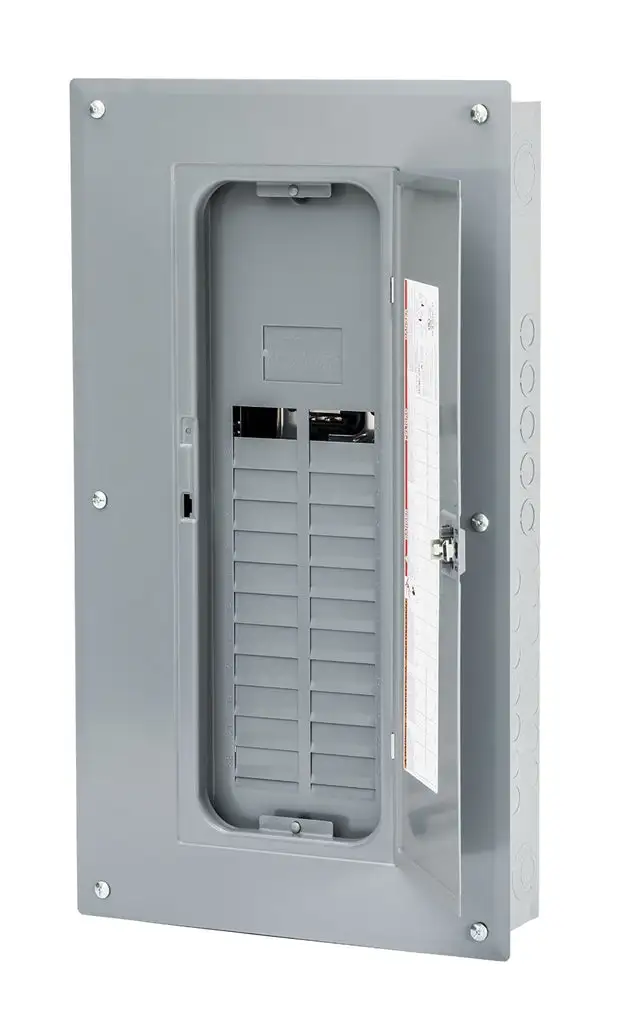

The Square D Homeline Value Pack 100 Amp 20-Space 40-Circuit Indoor Convertible Main Breaker Load Center for Plug-on Neutral breakers includes the cover, a selection of breakers and is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers.
Highlights:
- Amp rating: 100
- Spaces/Circuits: 20/40
- Each pole space accepts full-size, tandem or quad breakers
- Ground and neutral bars accept up to (3) #10-14 equipment grounds
- Accommodates plug-on secondary surge arrestor (sold separately)
- Overhead/underground feed simply by rotating the device before installing
- Single phase
- Rated 120/240 VAC and 22,000 AIR short circuit current rating
- Automatic flush adjusting cover requires less time to complete the job
- Designed with straight-In mains to save expensive cable and time
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
- Includes a fully distributed neutral bar, allowing for the installation of Homeline Plug-on Neutral combination arc fault breakers on any space
- For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
Warning: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm.
