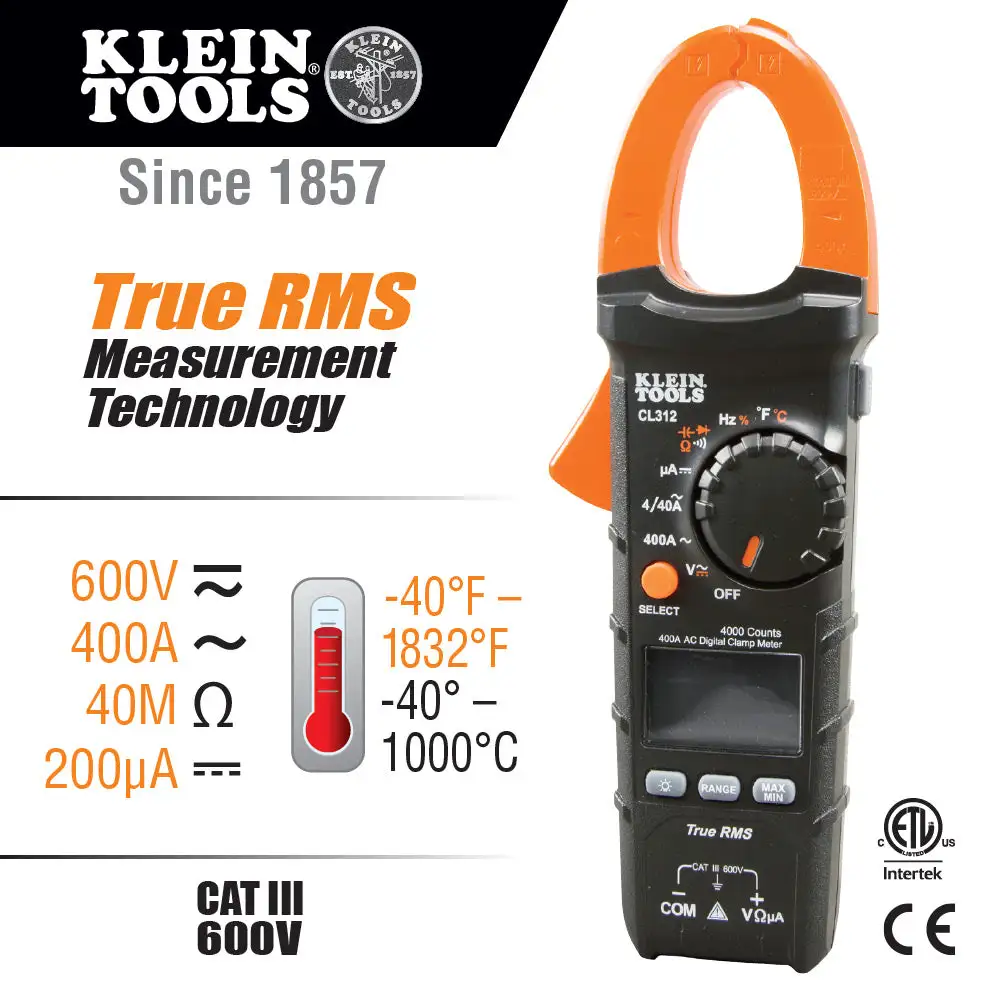

Klein Tools CL312 is an automatically ranging true root mean square (TRMS) digital clamp meter that measures AC current via the clamp. AC/DC voltage. DC microamps. resistance. continuity. frequency. capacitance. and tests diodes via test-leads. and temperature via a thermocouple probe. Features include Auto Range to improve efficiency and speed when making measurements; Diode Test to troubleshoot malfunctioning diodes; Max/Min to understand the variability from average of an electrical property being measured. and DC Microamps measurements when working with flame sensors.
Highlights:
- Automatically ranging true mean squared (TRMS) technology for increased accuracy
- Measures AC current via the clamp and AC/DC voltage. DC microamps. resistance. continuity. frequency. capacitance and test diodes via the test leads
- Thermocouple probe measures temperature
- Built to withstand a 3.3-foot (1 m) drop
- CAT III 600V. Class 2. Double insulation safety rating
- Backlit display for clear readings
- Powers off automatically after 15 minutes of non-use to conserve battery life
- Includes a carrying case. test leads and 3 x AAA batteries
- Low battery indicator and easily accessible battery compartment
- Meets requirements for use in basic and controlled electromagnetic environments like residential. office and light-industrial locations.
- Type: Voltage. Current. Resistance. Continuity
- Application: Measures AC Current. DC micro-Amp current
- Special Features: Low Battery Indicator. DC micro-Amps (uA)
- Material: ABS
- Batteries: 3 x AAA
- Auto-Power Off: Yes
- Jaw Size: 1-1/8” (28.6 mm)
- Drop Protection: 3.3 Ft. (1m)
- Display: 4000 Count LCD
- Functions: AC current. AC/DC voltage. DC micro-Amps. resistance. continuity. frequency. capacitance and test diodes.
- Voltage: 600V AC; 600V DC
- Frequency: 10Hz – 1 MHz
- Current: 400A ACWarning: Cancer and Reproductive Harm – .
