TOOL1SHOoo 2.2KW Gas Powered Chainsaw 20Inch 52cc 2 Stroke Petrol Chain Saw Cutting Tree

Product Description

This TOOL1SHOoo gasoline chainsaw has the advantages of high quality(PP and Mn steel material). superior performance(10500rpm speed). powerful engine(2.2kw power). providing you with a professional cutting tool that saves you time and labor. With silencing and damping designs. an ergonomic handle. dual switches. a braking baffle. and a pull-start ignition method. it is comfortable and safe to use.

Key Features

High quality material This product is made of high-quality PP shell. manganese steel guide rod and chain. sturdy and durable. wear-resistant. and not easily deformed.

Excellent performance A 2-stroke engine with a displacement of 52cc. a high-speed speed of 10500rpm. and a high-power output of 2.2KW. a high magnetic flywheel with thickened blade design. and a carburetor with atomized fuel function help the machine maintain normal and economical operation. reduce emissions. achieve fast cutting. and provide excellent performance (approximately 18.9 cutting diameter).

High safety The dual protection switch must be pressed simultaneously to operate. which can prevent the machine from accidentally starting and ensure the safety of cutting work. In addition. high-quality brake pads can be used for emergency braking. protecting hands from injury. avoiding wood chips from splashing. and improving safety.

Multi angle cutting By changing the direction of the machine. multi angle cutting can be achieved. making it convenient to use.

Automatic lubricating oil Automatic lubricating oil can provide a stable and economical supply for chains and bars. reducing friction and oil consumption by 20%. thereby improving cutting performance and extending service life.

How to Assemble the Chainsaw

1.Install the jam teeth in the right direction.

2.Install the guide bar.

3.Install the chain.

4.Cover the side cover.

5.Adjust the chain tightness.

6.Tighten the screw.

Specification

Color: Red. Black. Silver

Material: PP. Mn Steel

Style: Modern

Assembly Required: Yes

Engine Type: Single Cylinder. Air-cooled. 2-Stroke

Ignition System: Self-reset Pull Start

Fuel Tank Capacity: 550ml/18.6Oz

Chain Fuel Tank Capacity: 260ml/8.8Oz

Chain Pitch: 0.325#

Bore: 45mm/1.77inch

Power: 2.2kw

Speed: 10500rpm

Displacement: 52cc

Oil Mixture: 25:1(Gasoline: Oil)

Chain Length: 50.8cm/20inch

Max. Cutting Diameter: About 48cm/18.9inch

Product Size: 88*23*28cm/34.64*9.05*11.02inch

Package Size: 56*27*34cm/22.04*10.6*13.38inch

Gross Weight: 8.5kg/18.74 lbs

Package Includes

1* Gas Chainsaw

1* Chain

1* Guide Bar

1* Guide Bar Cover

1* Fuel Mixing Bottle

1* Oil Hopper

1* Tool Bag

1* English Manual

Other Accessories for Assembly

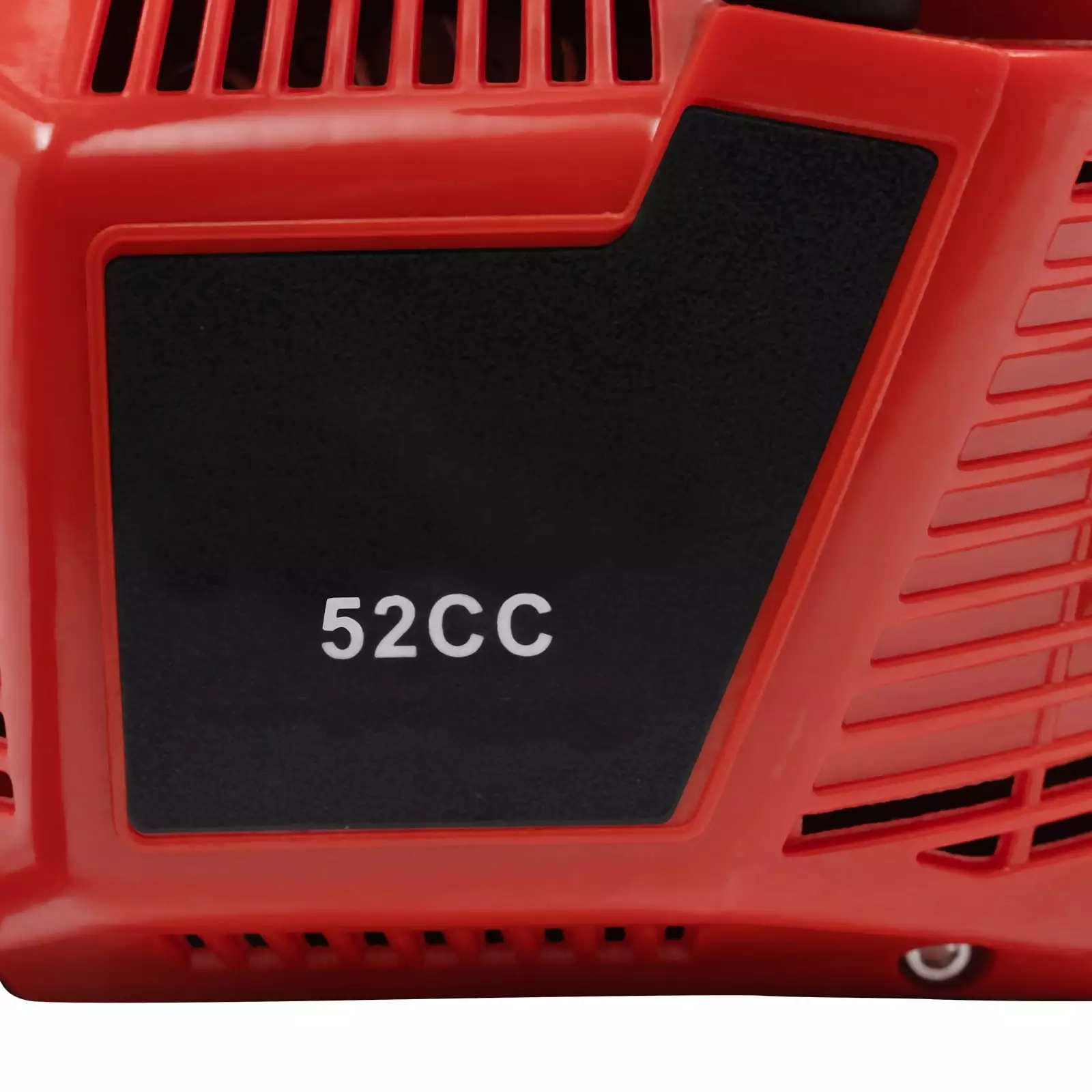

• Heat Dissipation Holes: The heat-sink holes on the side of the product can dissipate heat in time and prolong the service life of this product.
• 20-inch Guide Chain: It can meet the needs of cutting wood that need a longer bar.
• Guide Bar Cover: It allows for convenient storage of the guide bar when not in use and protects it well.
• Fuel Tanks: The 18.6Oz chainsaw fuel tank. 8.8Oz chain fuel tank. and equipped translucent fuel bottle allows for large capacity. a convenient mixture of fuels. and long-term use without frequent filling.
• Application It is suitable for forest harvesting. cutting wood. pruning branches. gardening. home woodworking. bamboo sawing. logging. light felling. DIY crafts. ranches. farms. and so on to meet different needs.
• Notes
  1. Before starting the gasoline chainsaw. please ensure that it fits well with the guide bar. and use a wrench to adjust the chain. When installing the guide bar. please note that the screw column on the side cover must be aligned with the guide bar hole before installation(The function of the screw column is to adjust the chain tightness.).
  2. Please use gasoline 90# with special 2-cycle engine oil and never use pure gasoline. Gasoline and oil mixture ratio: 25:1.
  3. Adjustment of oil output: the oil output can be controlled to turn larger to the left and smaller to the right.
  4. Please note that after the first ignition sound. closing the choke and repeatedly pulling the start handle will suck in too much fuel and prevent the engine from starting.
  5. If the choke knob is not fully pushed back after pulling the starter handle up to 6 times. the engine preheating may be missed. Too much fuel will flow out and submerge the spark plug. Then you can’t start the chainsaw.
  6. The damper is used to regulate air intake. When the engine is cold or not used for a long time. the damper needs to be pulled. If the engine is hot. it can be started directly. This is the same as the principle of starting a motorcycle! Close the damper. pull the start handle again 1-3 times to start it. and then you can use it normally.
  7. Please pay attention to the tightness of the chain during installation (Pull the chain by hand. The distance between the chain and the guide plate is 3-5mm/0.12-0.2inch.). otherwise. it will affect the use effect.
  8. After the chainsaw is started (The oil filler door must be empty.). it must wait for the chain to receive oil before starting to work(The oil pump will discharge oil and the ground will become wet.).
  9. The carburetor must be cleaned after every 100H of operation before use. The air filter must be cleaned after 8H of operation.
  10. When the chainsaw is not in use. it is better to pack it in plastic bags to avoid dust and water entering the machine and affecting its use. If the chainsaw is not used for a long time. the fuel oil in the tank must be cleaned.
  11. Please read the manual completely before installation and use. and pay particular attention to the safety instructions included.
  12. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. and make sure you do not mind before ordering.

• TOOL1SHOoo COLLECTION is a professional tool and equipment company aiming to provide quality products and services. If you have any problems. please feel free to contact us and we will reply to your in 24 hours.

---

Specifications

Brand	TOOL1SHOoo
Manufacturer Part Number	YLNXT3S7WDML8
Assembled Product Dimensions (L x W x H)	22.05 x 10.63 x 13.39 Inches
